Class: MapAssetItemView

MapAssetItemView()

Shows one layer and requests editing, movement, or removal.

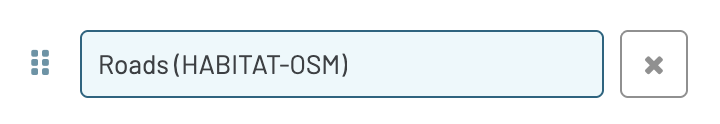

Screenshot

Constructor

new MapAssetItemView()

Since:
  • 2.41.0
Source:

Extends

  • Backbone.View

Members

className

Source:

events

Source:

tagName

Source:

Methods

focus()

Focus the layer selection button
Source:

focusMove()

Focus the layer's Move button
Source:

initialize(options)

Store the settings panel ID and listen for layer label changes.
Parameters:
Name Type Description
options object The view options
Properties
Name Type Description
model MapAsset The layer represented by this row
panelId string The workspace settings panel ID
Source:

moveAsset(event)

Request movement without selecting the layer.
Parameters:
Name Type Description
event Event The Move button click
Source:

previewRemoval(event)

Preview the layer being removed while its control is hovered or focused.
Parameters:
Name Type Description
event Event The pointer or focus change
Source:

removeAsset()

Request removal without mutating the asset
Source:

render() → {MapAssetItemView}

Render controls without interpolating model-supplied text.
Source:
Returns:
This view
Type
MapAssetItemView

selectAsset(event)

Request editing, carrying activation information for keyboard focus.
Parameters:
Name Type Description
event Event The selection button click
Source:

setSelected(selected)

Present selection owned by the workspace.
Parameters:
Name Type Description
selected boolean Whether this asset is being edited
Source:

template() → {string}

Create the layer's Move, selection, and Remove buttons.
Source:
Returns:
The HTML string for the layer item
Type
string

updateLabel()

Update the label and the Move and Remove buttons' accessible names
Source:
