Class: DownloadPanelView

DownloadPanelView()

The DownloadPanelView allows a user to draw an arbitrary polygon on the map and download the data within that polygon. The user can select the resolution and file type of the data to download. The view is responsible for rendering the buttons, handling user interactions, and generating the download links for the selected data.

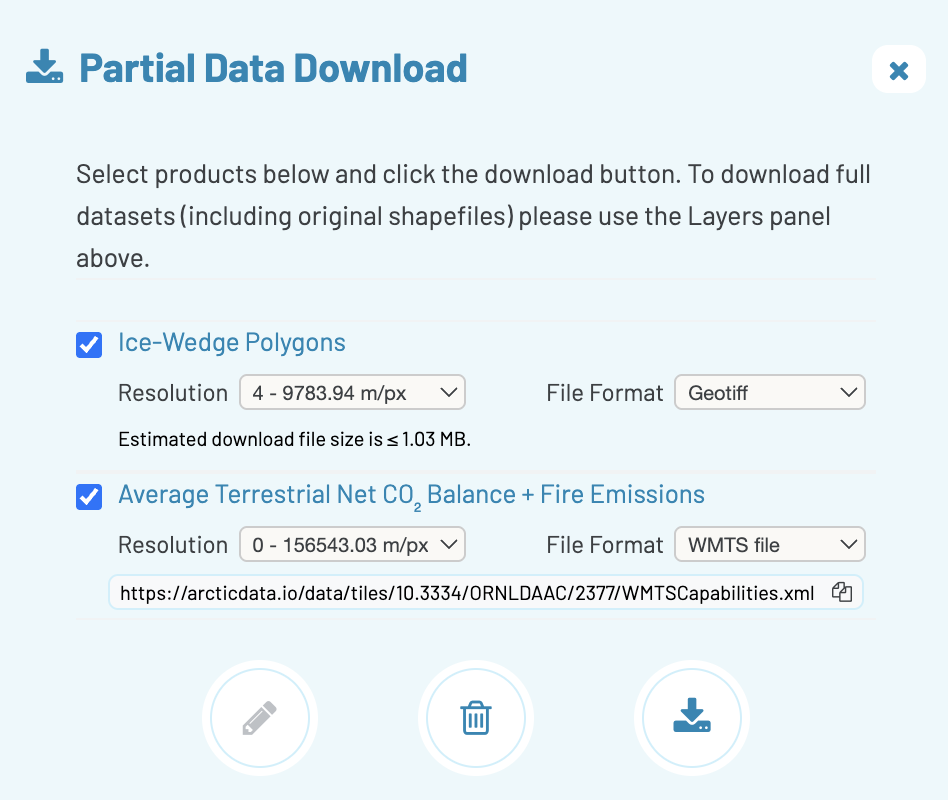

Screenshot

Constructor

new DownloadPanelView()

Since:
  • 2.33.0
Source:

Extends

  • Backbone.View

Members

buttonClass :string

Class to use for the buttons
Type:
  • string
Source:

buttonClassActive :string

Class to use for the active button
Type:
  • string
Source:

buttonClassDisable :string

Class to disable button
Type:
  • string
Source:

buttonEls :object

The buttons that have been rendered in the toolbar. Formatted as an object with the button name as the key and the button element as the value.
Type:
  • object
Source:

buttons :Array.<DrawToolButtonOptions>

The buttons to display in the toolbar.
Type:
Source:

className :string

The HTML classes to use for this view's element
Type:
  • string
Source:

classes

The classes of the sub-elements that combined to create the download panel view.
Source:

color :string

The color of the polygon that is being drawn as a hex string.
Type:
  • string
Source:
The array that store the list of URLs for each data layer that is selected for partial download.
Type:
  • Array
Source:

dataPanelClass :string

The HTML classes to use for this data panel element
Type:
  • string
Source:

downloadSizeLimit :number

The maximum size of the download in bytes. If download is estimated to exceed this size, the download will be blocked.
Type:
  • number
Source:
UI options for the dropdowns
Type:
  • object
Properties:
Name Type Description
resolution object The resolution dropdown options
fileType object The file type dropdown options
label string The label for the dropdown
defaultValue string The default value for the dropdown
defaultText string The default text for the dropdown
Source:

fileSizes :number

The file size for tiled data in geotiff format (in KB).
Type:
  • number
Source:

interactions :MapInteraction

A reference to the MapInteraction model on the MapModel that is used to listen for clicks on the map.
Type:
Source:

layer :CesiumVectorData

The CesiumVectorData model that will display the polygon that is being drawn.
Type:
Source:

mapModel :Map

The Cesium map model to draw on. This must be the same model that the mapWidget is using.
Type:
Source:

mapinteraction :MapInteraction

The GeoPoints collection that stores the points of the polygon that is being drawn.
Type:
Source:

mode

The current mode of the draw tool. This can be "draw", "move", "remove", or "add" - any of the "name" properties of the buttons array, excluding buttons like "clear" and "save" that have a method property.
Source:

objectServiceUrl :string

The objectServiceUrl from the MapModel
Type:
  • string
Source:

opacity :number

The initial opacity of the polygon that is being drawn. A number between 0 and 1.
Type:
  • number
Source:

points :GeoPoints

The GeoPoints collection that stores the points of the polygon that is being drawn.
Type:
Source:

template :Underscore.template

The primary HTML template for this view
Type:
  • Underscore.template
Source:

tileMatrixSet :string

The TileMatrixSet.
Type:
  • string
Source:

type :string

The type of View this is
Type:
  • string
Source:

zoomLevels :object

The z levels available for download along with their approximate pixel resolution.
Type:
  • object
Source:

Methods

addPoint(point) → {GeoPoint}

Adds a point to the polygon that is being drawn.
Parameters:
Name Type Description
point object The point to add to the polygon. This should have a latitude and longitude property.
Source:
Returns:
The GeoPoint model that was added to the polygon.
Type
GeoPoint

clearPoints()

Clears the polygon that is being drawn.
Source:

close()

Closes the download panel and resets the draw tool to its initial state.
Source:

downloadData() → {Promise}

Downloads data for each layer specified in `dataDownloadLinks` and provides progress updates. This function iterates through the `dataDownloadLinks` object, retrieves data for each layer, and generates a ZIP file for download. It updates a progress bar to reflect the download status and handles errors or cases where no data is available.
Properties:
Name Type Description
dataDownloadLinks object An object containing data layer information.
Properties
Name Type Description
layerID string The unique identifier for the data layer.
data object Metadata for the data layer.
Properties
Name Type Description
urls Array.<string> Array of URLs to retrieve data from.
baseURL string Base URL for the data layer.
fileType string The file type of the data (e.g., "zip").
fileSize number The size of the data file in bytes.
layerName string The name of the data layer.
metadataPid string The metadata pid of the data layer.
Source:
Returns:
Resolves when all data layers have been processed.
Type
Promise

events()

Source:

fileTypeSelection(layerID)

Handles the selection of file type and updates the state of the save button and other UI elements based on whether any checkboxes are checked.
Parameters:
Name Type Description
layerID string The ID of the map layer being interacted with.
Source:

generatePreviewPanel()

Generates the preview panel for downloading selected map layers. Retrieves the selected layers, removes duplicates, and dynamically creates a user interface for selecting resolution, file type, and initiating downloads. It also handles UI interactions such as toggling panels, enabling/disabling buttons, and updating file size information based on user selections.
Source:

getBoundingBox(polygon) → {object}

Calculates the bounding box of a given polygon.
Parameters:
Name Type Description
polygon Array.<Array.<number>> An array of points representing the polygon, where each point is an array of two numbers [longitude, latitude].
Source:
Returns:
An object representing the bounding box with the following properties: - {number} west - The minimum longitude (x-coordinate). - {number} south - The minimum latitude (y-coordinate). - {number} east - The maximum longitude (x-coordinate). - {number} north - The maximum latitude (y-coordinate).
Type
object

getPolygon(jsonData) → {Array.<Array.<number>>}

Converts an array of geographic points into a polygon representation. The input array is reversed, and the first point is appended to the end to close the polygon.
Parameters:
Name Type Description
jsonData Array.<object> An array of objects representing geographic points. Each object should have `longitude` and `latitude` properties.
Source:
Returns:
An array of arrays representing the polygon.
Type
Array.<Array.<number>>

getRawFileSize(resolution, fileFormat, layerID, fullDownloadLink, pngDownloadLink, gpkgDownloadLink, id, layerName, wmtsDownloadLinkopt, metadataURL, tiffDownloadLink) → {number}

Calculates the total file size for a given map layer based on the file type, zoom level, and bounding box. Generates URLs for individual tiles or retrieves a single download link for the layer. Updates the `dataDownloadLinks` object with the generated URLs and metadata for the specified layer.
Parameters:
Name Type Attributes Description
resolution number The zoom level for the map tiles.
fileFormat string The format of the file to download (e.g., "png", "tif", "wmts").
layerID string The unique identifier for the data layer.
fullDownloadLink string The full download link for the layer.
pngDownloadLink string The template URL for downloading PNG tiles.
gpkgDownloadLink string The template URL for downloading Geopackage tiles.
id string A unique identifier for the layer or dataset.
layerName string The name of the data layer.
wmtsDownloadLink string <optional>
 (Optional) The WMTS download link for the layer. Currently unused.
metadataURL string The metadata URL for the layer.
tiffDownloadLink string The template URL for downloading TIFF tiles.
Source:
Returns:
The total file size for the specified layer in bytes.
Type
number

getTileCoordinates(boundingBox, zoomLevel) → {object}

Calculates the tile coordinates for a given bounding box and zoom level.
Parameters:
Name Type Description
boundingBox object The geographical bounding box.
Properties
Name Type Description
west number The western longitude
east number The eastern longitude
south number The southern latitude
north number The northern latitude
zoomLevel number The zoom level for which to calculate the tile coordinates.
Source:
Returns:
An object containing the zoom level and the tile coordinates: - `zoom`: The zoom level. - `tileXWest`: The tile column for the western edge. - `tileXEast`: The tile column for the eastern edge. - `tileYSouth`: The tile row for the southern edge. - `tileYNorth`: The tile row for the northern edge.
Type
object

handleButtonClick(event)

Handles a click on a button in the toolbar. If the button has a method property, it will call that method. Otherwise, it will toggle the mode of the draw tool.
Parameters:
Name Type Description
event Event The click event.
Source:

handleClick(throttleopt)

Handles a click on the map. If the draw tool is active, it will add the coordinates of the click to the polygon being drawn.
Parameters:
Name Type Attributes Default Description
throttle number <optional>
 50 The number of milliseconds to block clicks for after a click is handled. This prevents double clicks.
Source:

initialize(options)

Initializes the DrawTool
Parameters:
Name Type Description
options object A literal object with options to pass to the view
Properties
Name Type Attributes Description
model Map The Cesium map model to draw on. This must be the same model that the mapWidget is using.
cesiumWidgetView CesiumWidgetView The CesiumWidgetView that contains the map.
mode string <optional>
 The initial mode of the draw tool.
Source:

layerSelection()

Handles the selection of map layers and updates the state of the save button and other UI elements based on whether any checkboxes are checked.
Source:

removeClickListeners()

Removes the click listeners from the map model and sets the clickFeatureAction back to its original value.
Source:

removeLayer()

Removes the polygon object from the map
Source:

render() → {DownloadPanelView}

Render the view by updating the HTML of the element. The new HTML is computed from an HTML template that is passed an object with relevant view state.
Source:
Returns:
This view
Type
DownloadPanelView

renderToolbar()

Create and insert the buttons for drawing and clearing the polygon.
Source:

reset()

Resets the draw tool to its initial state.
Source:

retrieveDataFromURL(layerID, urls, baseURL, fileType, onProgressopt) → {Promise.<JSZip>}

Retrieves data from a list of URLs, processes the data, and packages it into a ZIP file.
Parameters:
Name Type Attributes Description
layerID string The identifier for the layer being processed.
urls Array.<string> An array of URLs to fetch data from.
baseURL string The base URL used to sanitize and structure file paths.
fileType string The type of file being processed (e.g., "wmts").
onProgress function <optional>
 Optional callback function to report download progress as a percentage.
Source:
Throws:
If there is an issue with fetching or processing the data.
Type
Error
Returns:
A promise that resolves to a JSZip instance containing the downloaded files.
Type
Promise.<JSZip>

setButtonStatus(name, status)

Sets the status of the button to either "enabled", "deactivated", or "focused".
Parameters:
Name Type Description
name string The name of the button to set the status for.
status "enabled" | "deactivated" | "focused" The status to set the button to.
Source:

setButtonStatuses(statues)

Set the status on multiple buttons at once
Parameters:
Name Type Description
statues object An object with the button names as keys and the status as values
Source:

setClickListeners()

Set listeners to call the handleClick method when the user clicks on the map.
Source:

setUpConnectors() → {GeoPointsVectorData}

Sets up the connector to connect the GeoPoints collection to the CesiumVectorData model. Adds the connector and points properties to this view.
Source:
Returns:
The connector
Type
GeoPointsVectorData

setUpLayer() → {CesiumVectorData}

Sets up the layer to show the polygon on the map that is being drawn. Adds the layer property to this view.
Source:
Returns:
The CesiumVectorData model that will display the polygon that is being drawn.
Type
CesiumVectorData

setUpMapModel()

Adds reference to interaction model to view
Source:

showError(messageopt)

Show an error message to the user if the map model is not available or any other error occurs.
Parameters:
Name Type Attributes Description
message string <optional>
 The error message to show to the user.
Source:

tileFromLatLon(lon, lat, zoom) → {Object}

Converts geographic coordinates (longitude and latitude) into tile coordinates for a given zoom level, based on the WGS1984Quad tiling scheme.
Parameters:
Name Type Description
lon number The longitude in degrees, ranging from -180 to 180.
lat number The latitude in degrees, ranging from -90 to 90.
zoom number The zoom level, where higher values represent greater detail.
Source:
Returns:
An object containing the tile coordinates: - `x`: The horizontal tile index. - `y`: The vertical tile index (inverted for WGS84). - `z`: The zoom level.
Type
Object

toggleDraw(drawopt, offStatusopt)

Toggles the draw tool on and off.
Parameters:
Name Type Attributes Description
draw boolean <optional>
 If true, the draw tool will be turned on. If false, it will be turned off. If not provided, the draw tool will toggle to the opposite of the current state.
offStatus "enabled" | "deactivated" <optional>
 The status to set the button to when the toggle is off.
Source:

toggleLayerSection(event)

Open or close the data/layer item in the list of downloadable layers.
Parameters:
Name Type Description
event Event The click event that triggered this function.
Source:

updateStatusBar(options)

Updates the status bar with a message, progress, and visibility options.
Parameters:
Name Type Description
options object The options for updating the status bar.
Properties
Name Type Attributes Description
message string <optional>
 The message to display in the status bar.
progress number | null <optional>
 The progress percentage (0-100) to display. Ignored if a message is provided.
show boolean <optional>
 Whether to show or hide the status bar.
error boolean <optional>
 Whether the status bar should indicate an error state.
Source:

updateTextbox(infoBox, fileSizeDetails, fileType, layerID)

Updates the text content of the provided info box with file size details and file type information.
Parameters:
Name Type Description
infoBox HTMLElement The HTML element where the file size information will be displayed.
fileSizeDetails number The size of the file in kilobytes (KB).
fileType string The type of the file (e.g., "wmts").
layerID string The ID of the map layer being interacted with.
Source:
